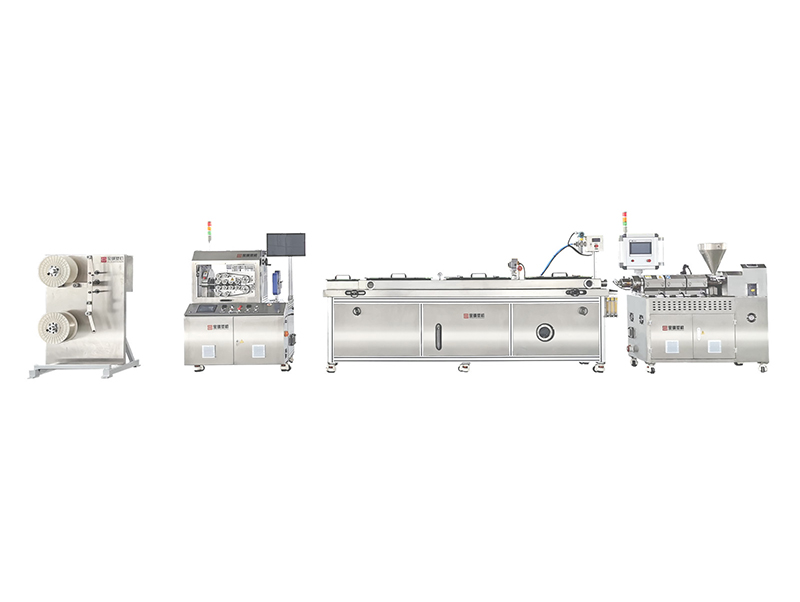

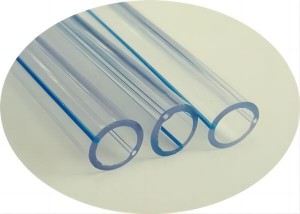

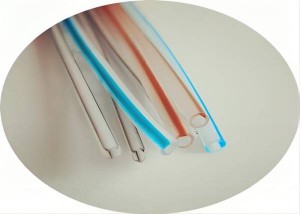

Optimum design Screw and driving system, with excellent extrusion and plasticization effect.
Core rods and die are made of S136 mould steel material, which ensures the inner flow surface glossiness and anti-corrosion. Structure of mold adopts "high pressure volumetric type", which can provide stable and high-speed extrusion for the tube material with tiny fluctuation.
With the new "accurate control of weak vacuum" technology: vacuum and water system are controlled separately. In this way, we can coordinate the multilevel water balance control system with vacuum system, ensuring stable vacuum degree, cooling water level and water flowing.
Adopt LaserMike bi-direction high speed diameter measurement system for measuring diameter on line, measuring precision can reach ±0.001MM.
Puller adopt imported multilayer composite wearable strap (in accordance with medical sanitary requirements), with high level precision roller, SERVO motor driving offer high stability pulling.
Cutter equips with low inertia aluminum alloy rotating knife arm structure, driven and controlled by Servo system, which offers high speed and high accuracy cutting action. With PLC programmable control and human-computer interface, cutter can realize continuous cutting, timing cutting, length counting cutting etc. Cutting length can be freely set, automatic counting.
| Model | Processing pipe diameter range (mm) | Screw diameter (mm) | L/D | Main motor power (KW) | Capacity (Kg/h) |
|---|---|---|---|---|---|
| SXG-30 | 0.2~3.0 | 30 | 25-28 | 3.7/5.5 | 5-10 |
| SXG-45 | 1.5~8.0 | 45 | 25-28 | 11/15 | 24-38 |
| SXG-50 | 2.0~12.0 | 50 | 28-30 | 15/18.5 | 30-45 |
| SXG-65 | 3.0~16.0 | 65 | 28-30 | 30/37 | 55-80 |
| SXG-75 | 4.0~25.0 | 75 | 28-30 | 37/45 | 70-110 |
| OD (mm) | Producing speed (m/min) | Control precision ≤mm |
|---|---|---|
| ≤1.0 | 100-180 | ±0.01 |
| ≤3.3 | 60-160 | ±0.02 |
| ≤4.5 | 45-160 | ±0.04 |
| ≤5.3 | 40-120 | ±0.05 |
| ≤7.0 | 35-80 | ±0.06 |
| ≤9.3 | 25-40 | ±0.07 |
| ≤12.0 | 16-35 | ±0.10 |
| Cutting length | ≤50mm | ≤300mm | ≤1000mm |
|---|---|---|---|
| Control precision | ±0.5mm | ±1.0mm | ±2.0mm |
The core rods and die are made of S136 mould steel material, which ensures inner flow surface glossiness and anti-corrosion properties.
By using the LaserMike bi-direction high speed diameter measurement system on line, the measuring precision can reach ±0.001MM.
The vacuum and water systems are controlled separately, coordinating the multilevel water balance control with the vacuum system to maintain a stable vacuum degree, cooling water level, and water flowing.
The cutter supports continuous cutting, timing cutting, and length counting cutting. The cutting length can be set freely, and it includes automatic counting features.
The SXG-30 model has a processing pipe diameter range of 0.2 to 3.0 mm, with a screw L/D ratio of 25-28 and a capacity of 5-10 Kg/h.
For cutting lengths of 50mm or less, the control precision of the cutting system reaches ±0.5mm.
