| Model | AS-SJ50 | AS-SJ65 | AS-SJ75 | AS-SJ90 |
|---|---|---|---|---|
| Max width of strip process (mm) | 30 | 50 | 80 | 120 |
| Max producing speed (m/min) | 25 | 25 | 25 | 25 |
| Install power (kW) | 25.9 | 47.5 | 58.5 | 70.5 |
| Cooling water flow (m³/h) | 5 | 7 | 8 | 9 |
| Compressed air (Mpa) | 0.6 | 0.6 | 0.6 | 0.6 |
Double head unreeling frame paired with a metal strip roller forming machine.
Oriented by upper and down wheels, equipped with an imported steel structure frame glue supply system to ensure continuous automatic glue supply and smooth gelatinization.
Features automatic nap recycling with automatic supply and flocking humidity control. The nap recycling device runs smoothly, reliably, and prevents jam issues.
Suitable for online cutting of alloy frame seal strips. Integrated with a Japan Mitsubishi programmable controller (PLC) to realize smooth and reliable cutting.
The maximum width of the strip process varies by model: AS-SJ50 processes up to 30mm, AS-SJ65 up to 50mm, AS-SJ75 up to 80mm, and the AS-SJ90 model supports a maximum width of 120mm.
All models in this series (AS-SJ50, AS-SJ65, AS-SJ75, and AS-SJ90) feature a consistent maximum producing speed of 25 meters per minute.

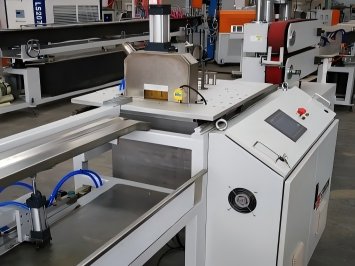

The online hydraulic cutting machine is equipped with a Japan Mitsubishi programmable controller (PLC), which ensures smooth, precise, and reliable cutting operations.
The flocking machine features an automatic nap recycling system with automatic supply and built-in humidity control. The recycling mechanism is designed to run smoothly and reliably to prevent any jam phenomena.
Installation power ranges from 25.9 kW to 70.5 kW depending on the model. The required cooling water flow is 5 m³/h for AS-SJ50, 7 m³/h for AS-SJ65, 8 m³/h for AS-SJ75, and 9 m³/h for AS-SJ90, all operating with a compressed air pressure of 0.6 Mpa.
